Maddie MOD1
Dual AD
Envelope
Two independent attack-decay envelopes with per-trigger random timing variation.
- Width
- 4 HP
- Depth
- 28 mm
- Power
- +12V
- MCU
- Arduino Nano
- Controls
- 3 pots · button · LED
- I/O
- 4× 0–5V jacks
Overview
Dual AD packs two independent attack-decay envelopes sharing the same attack and release knobs. The third knob dials in per-envelope random timing variation: fully CCW is rock-steady, fully CW adds a different random deviation to every trigger — stronger at short settings, lighter at long ones. Envelope 1 can also be fired by hand with the button. Outputs are fast 16-bit PWM.

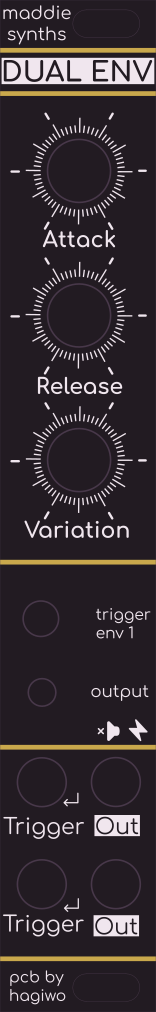

Panel & I/O
| Control | Pin | Function |
|---|---|---|
| POT1 | A0 | Attack time |
| POT2 | A1 | Release time |
| POT3 | A2 | Vary — random per-trigger timing variation |
| BTN | D4 | Trigger envelope 1 |
| LED | D3 | Envelope 1 level |
| F1 | D17 | In — Trigger 1 |
| F2 | D9 | Out — Envelope 1 (PWM CV) |
| F3 | D10 | In — Trigger 2 |
| F4 | D11 | Out — Envelope 2 (PWM CV) |
Features
- Two fully independent AD envelopes from one 4 HP module
- Per-trigger random timing variation for humanized, evolving dynamics
- Manual trigger button on envelope 1
- 16-bit PWM envelope outputs, 8-bit PWM LED
